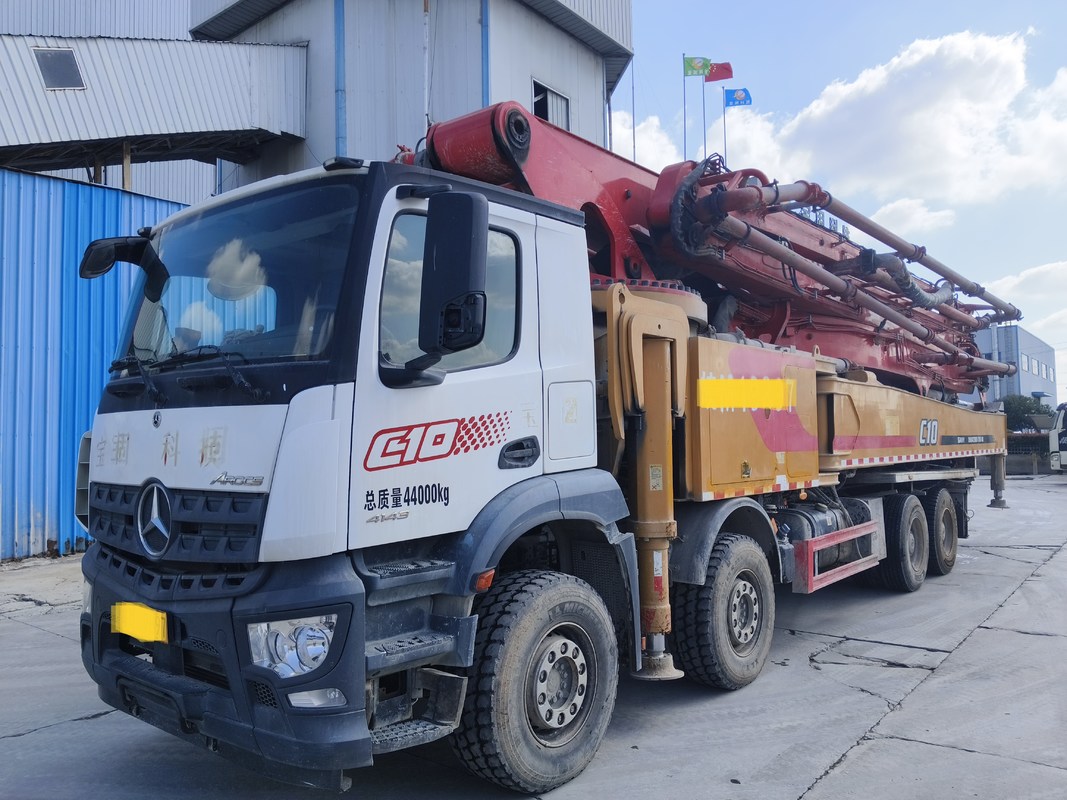

2020 Powerful Sany 62m concrete pump truck - reliable and cost-effective pump truck

Dettagli del prodotto

Luogo di origine: Cina

Marca: SANY

Numero di modello: 62m

Termini di trasporto & di pagamento

Quantità di ordine minimo: 1 sezione

Imballaggi particolari: Nave roro, nave sfusa da carico

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione di prodotto

Dettagli del prodotto

Evidenziare:

Modello n.:	Sym5442thbeb	Anno di pompaggio:	2020
Altezza massima del tessuto:	62m	Condizione:	Usato
Numero dell'albero:	4	Modalità di unità:	8x4
Potenza netta massima del motore:	320KW	massa in ordine di marcia:	44000 kg

Modello n.:	Sym5442thbeb
Anno di pompaggio:	2020
Altezza massima del tessuto:	62m
Condizione:	Usato
Numero dell'albero:	4
Modalità di unità:	8x4
Potenza netta massima del motore:	320KW
massa in ordine di marcia:	44000 kg

Descrizione di prodotto

2020 Powerful Sany 62m concrete pump truck - reliable and cost-effective pump truck

Key Features

High-Efficiency Pumping System: A large-capacity hopper effectively improves pumping efficiency.
Intelligent Boom Technology: Equipped with an intelligent boom system, it supports one-touch positioning, enabling quick and accurate positioning for all pumping conditions. Furthermore, it utilizes fourth-generation composite vibration reduction technology, utilizing flexible pumping control, variable frequency vibration damping, and active vibration reduction to ensure smoother operation.
Energy Saving and Consumption Reduction: Utilizing engine power self-matching technology, it perfectly matches pumping conditions to the engine's characteristic curve, ensuring optimal fuel consumption.
Highly Reliable Hydraulic System: Based on an open-loop hydraulic system, it pioneers a cast integrated valve block, extending the life of hydraulic components. A multi-stage filtration system ensures hydraulic cleanliness reaches NaS7, significantly reducing the risk of pump and valve sticking.
Excellent Safety and Flexibility: Equipped with multiple safety features (such as overload protection and emergency stop). The boom can lay materials horizontally at ±360°, and the last boom can realize 180° reverse hook, which makes the laying range wider and more flexible to deal with complex working conditions.

Specifications

Brand name	SANY
Pump model	SYM5442THBEB
Pump year	2020
Boom sections	4 SECTIONS RZ FOLD
Vertical Reach	61.1M
Horizontal Reach	55.9M
Max Concrete Output	180m3/h
Concrete Press.	13 MPa
Radio Remote control	concrete pump remote controller
Radio Remote Brand	remote controller HBC
Condition	Used but stable condition
Repair standard	Basic maintenance
Truck brand	Benz chassis
Engine Type	Diesel
Dimension(LWH)	1455025504000mm
Total Weight	44000kg
Maintenance items	Hopper accessory; sheet metal;check and test all system; cleaning
